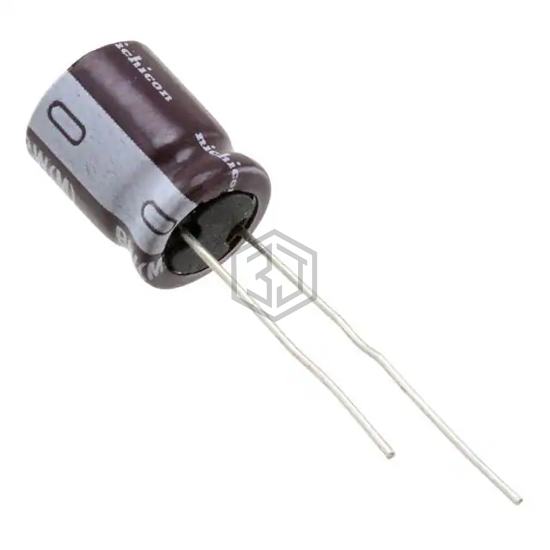

CAP ALUM 680UF 20% 10V RADIAL
UPW1A681MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,813
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 570 mA @ 120 Hz |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A681MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215054681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V RADIAL | 94% | View |
| ELXV6R3ELL681MJ16S | United Chemi-Con | CAP ALUM 680UF 20% 6.3V RADIAL | 85% | View |
| UPA0J681MPD | Nichicon | CAP ALUM 680UF 20% 6.3V RADIAL | 79% | View |
| 35WXA680MEFC12.5X16 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 76% | View |
| 672D687H6R3DM5D | Vishay Sprague | CAP ALUM 680UF 6.3V RADIAL | 70% | View |
| MAL215066681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 59% | View |
