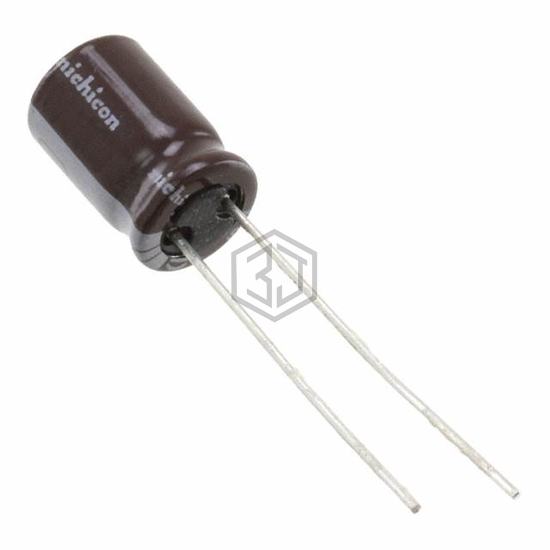

CAP ALUM 680UF 20% 6.3V RADIAL
UPA0J681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D687H6R3DM5D | Vishay Sprague | CAP ALUM 680UF 6.3V RADIAL | 100% | View |
| 672D687H6R3DM5CE3 | Vishay Sprague | CAP ALUM 680UF 6.3V RAD | 100% | View |
| MAL215054681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V RADIAL | 83% | View |
| 35WXA680MEFC12.5X16 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 62% | View |
| 672D687H020ET3J | Vishay Sprague | CAP ALUM 680UF 20V RADIAL | 56% | View |
| 672D687F020ET5D | Vishay Sprague | CAP ALUM 680UF 20V RADIAL | 56% | View |
Submit your RFQ for UPA0J681MPD and get a quote within 24 hours.
