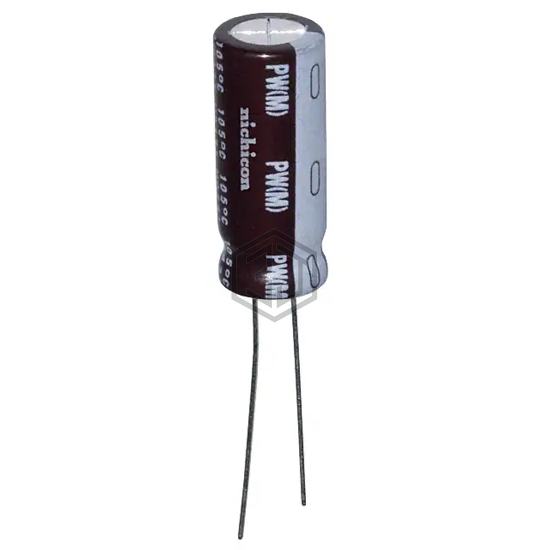

CAP ALUM 1500UF 20% 10V RADIAL
UPW1A152MPH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,666
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.224 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.44 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A152MPH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY100ELL152MJ30S | United Chemi-Con | CAP ALUM 1500UF 20% 10V RADIAL | 93% | View |
| UPA0J152MPD3 | Nichicon | CAP ALUM 1500UF 20% 6.3V RADIAL | 83% | View |
| 158KXM6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 6.3V RADIAL | 75% | View |
| ELXV250ELL152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 75% | View |
| MAL215035152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V RADIAL | 74% | View |
| 678D158M6R3DM5O | Vishay Sprague | CAP ALUM 1500UF 20% 6.3V RADIAL | 70% | View |
Submit your RFQ for UPW1A152MPH6 and get a quote within 24 hours.
