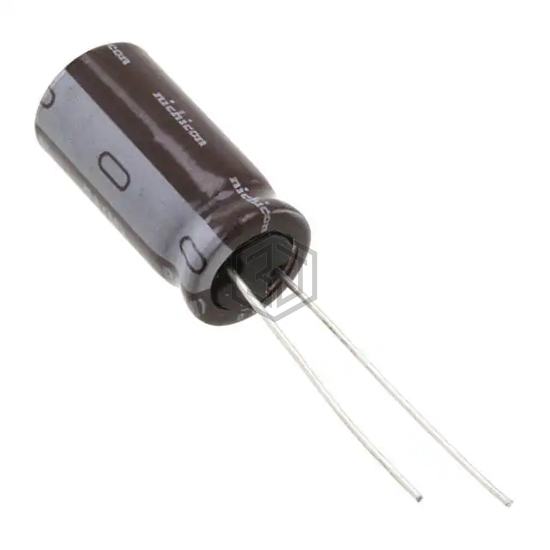

CAP ALUM 1500UF 20% 6.3V RADIAL
UPA0J152MPD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.267 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.49 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV250ELL152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 77% | View |
| ELXY100ELL152MJ30S | United Chemi-Con | CAP ALUM 1500UF 20% 10V RADIAL | 76% | View |
| MAL214660152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 75% | View |
| MAL216065152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V RADIAL | 67% | View |
| B41858C4158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 16V RADIAL | 66% | View |
| MAL224661152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 61% | View |
Submit your RFQ for UPA0J152MPD3 and get a quote within 24 hours.
