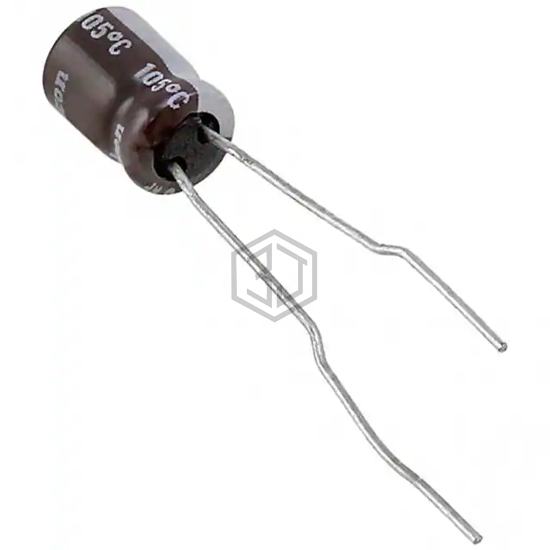

CAP ALUM 56UF 20% 6.3V RADIAL
UPW0J560MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,194
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 950 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J560MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-FC0J560H | Panasonic Electronic Components | CAP ALUM 56UF 20% 6.3V RADIAL | 79% | View |
| EEA-FC0J560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 6.3V RADIAL | 79% | View |
| UPV1C560MFD1TD | Nichicon | CAP ALUM 56UF 20% 16V RADIAL | 63% | View |
| 601D566F200FL3 | Vishay Sprague | CAP ALUM 56UF 200V AXIAL | 56% | View |
| B41866C6566M000 | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 50V RADIAL | 56% | View |
| 630D566M035DC2A | Vishay Sprague | CAP ALUM 56UF 20% 35V AXIAL | 56% | View |
