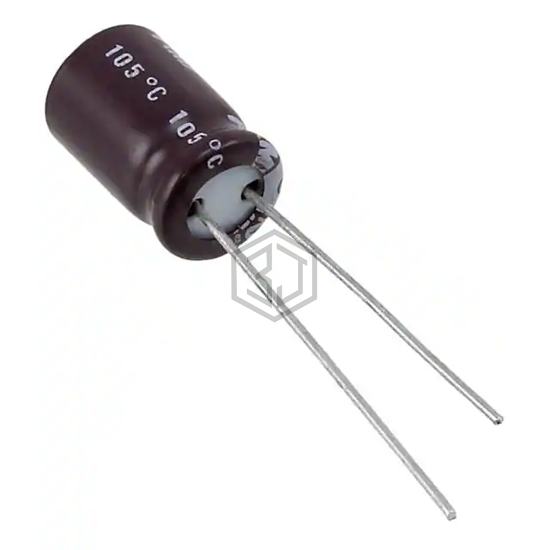

CAP ALUM 68UF 20% 35V RADIAL
UPV1V680MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,400
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 370 mA @ 100 kHz |
| Impedance | 410 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1V680MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1V680MGD1TD | Nichicon | CAP ALUM 68UF 20% 35V RADIAL | 100% | View |
| 686KXM050M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 85% | View |
| UVY1J680MPD1TA | Nichicon | CAP ALUM 68UF 20% 63V RADIAL | 70% | View |
| ELXV630ELL680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 60% | View |
| MAL213668689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V RADIAL | 57% | View |
| EEU-FC2A680LB | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 53% | View |
Submit your RFQ for UPV1V680MGD1TA and get a quote within 24 hours.
