Vishay Beyschlag/Draloric/BC Components
CAP ALUM 68UF 20% 63V RADIAL

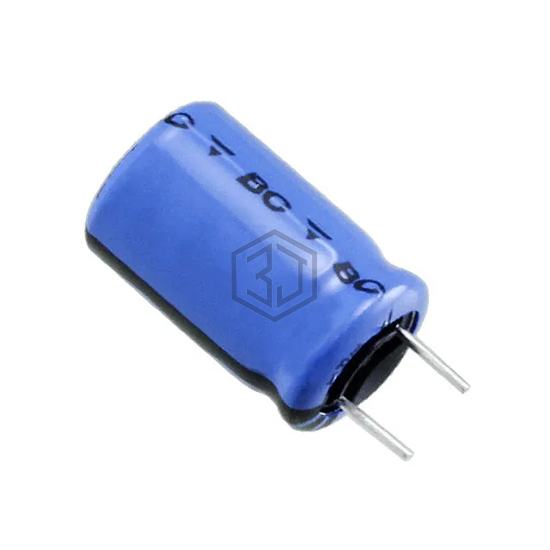

MAL213668689E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 68UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 182 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 210 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV630ELL680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 100% | View |
| LXY63VB68RM10X16LL | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 96% | View |
| UVY1J680MPD1TA | Nichicon | CAP ALUM 68UF 20% 63V RADIAL | 95% | View |
| UPM1J680MPD1TD | Nichicon | CAP ALUM 68UF 20% 63V RADIAL | 82% | View |
| EEU-FC2A680LB | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 71% | View |
| EV686M025A9GAAKPLP | KEMET | ALUM ELECTRO CAP | 60% | View |
