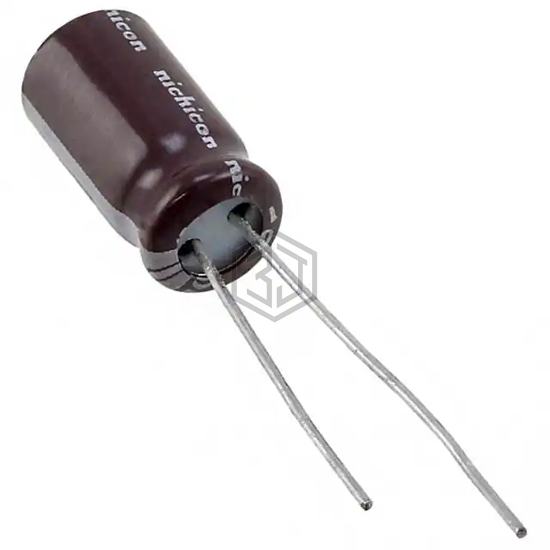

CAP ALUM 68UF 20% 16V RADIAL
UPV1C680MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,045
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 220 mA @ 100 kHz |
| Impedance | 850 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1C680MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212385689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 16V AXIAL | 81% | View |
| USF1A680MDD | Nichicon | CAP ALUM 68UF 20% 10V RADIAL | 75% | View |
| MAL212327689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 40V AXIAL | 65% | View |
| MAL212360689 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 35V AXIAL | 65% | View |
| EKMQ630ETC680MHB5D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 64% | View |
| 601D686F150FP1 | Vishay Sprague | CAP ALUM 68UF 150V AXIAL | 56% | View |
Submit your RFQ for UPV1C680MGD1TA and get a quote within 24 hours.
