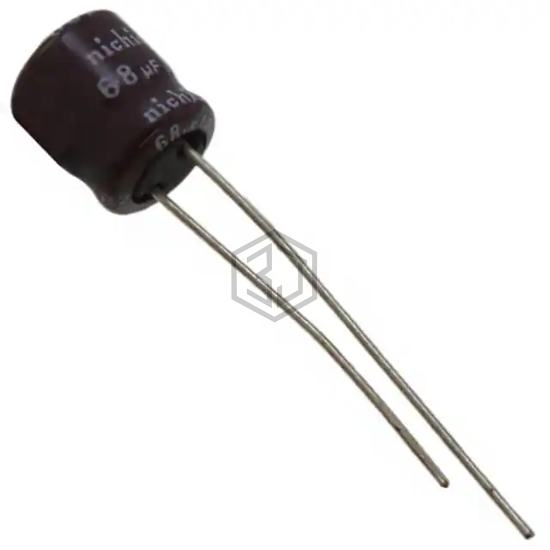

CAP ALUM 68UF 20% 10V RADIAL
USF1A680MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,943
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 800 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1A680MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-A1AKG680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 10V RADIAL | 78% | View |
| MAL212323689 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 6.3V AXIAL | 77% | View |
| MAL212363689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 6.3V AXIAL | 77% | View |
| 601D686F150FP1 | Vishay Sprague | CAP ALUM 68UF 150V AXIAL | 56% | View |
| EY2A680MCH0815S | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 52% | View |
| EKMQ500ELL680MF11D | United Chemi-Con | CAP ALUM 68UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for USF1A680MDD and get a quote within 24 hours.
