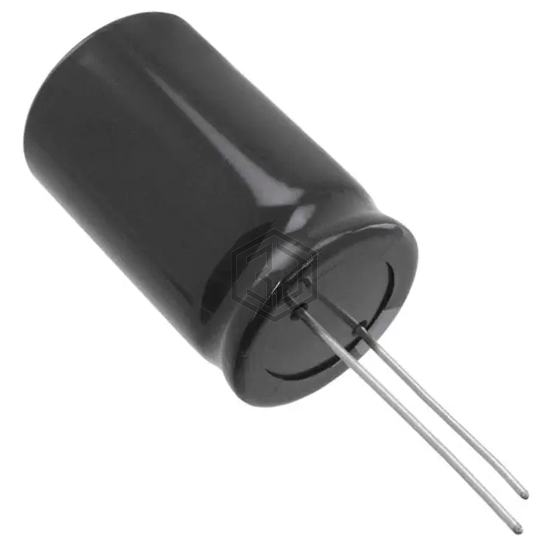

CAP ALUM 180UF 20% 420V RADIAL
UPTW6181MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 4,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209444181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 420V SNAP | 98% | View |
| UPHW6181MHD | Nichicon | CAP ALUM 180UF 20% 420V RADIAL | 97% | View |
| LQS2G181MELB25 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 96% | View |
| 450MXC180MEFCSN35X30 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 90% | View |
| 381LX181M350K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 350V SNAP | 89% | View |
| MAL215969181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 500V SNAP | 87% | View |
