CAP ALUM 180UF 20% 220V RADIAL

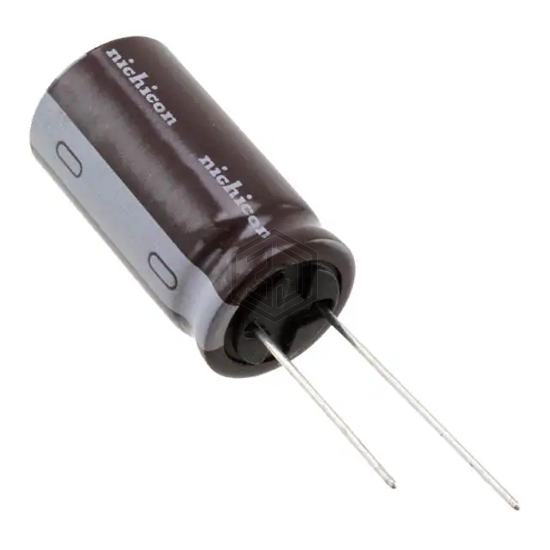

UPT2P181MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 220V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can.
In Stock: 5,972
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 670 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.072 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200SXC180MEFC20X25 | Rubycon | CAP ALUM 180UF 20% 200V SNAP | 90% | View |
| 250TXW180MEFC18X25 | Rubycon | CAP ALUM 180UF 20% 250V RADIAL | 86% | View |
| UPW1J181MHD6TO | Nichicon | CAP ALUM 180UF 20% 63V RADIAL | 78% | View |
| B41858D9187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 70% | View |
| ELXS401VSN181MQ25S | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 66% | View |
| 381LX181M420H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 420V SNAP | 65% | View |
Submit your RFQ for UPT2P181MHD and get a quote within 24 hours.
