CAP ALUM 68UF 20% 400V RADIAL

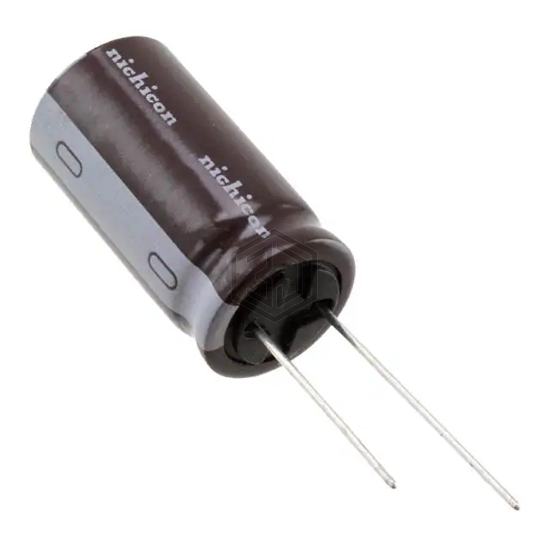

UPT2G680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,421
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPT2G680MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXC68MEFCSN22X25 | Rubycon | CAP ALUM 68UF 20% 400V SNAP | 96% | View |
| 420MXC68MEFCSN22X25 | Rubycon | CAP ALUM 68UF 20% 420V SNAP | 95% | View |
| EKXJ401ELL680ML25S | United Chemi-Con | CAP ALUM 68UF 20% 400V RADIAL | 93% | View |
| 450CXW68MEFR16X25 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 92% | View |
| 861141483001 | Würth Elektronik | CAP ALUM 68UF 20% 450V SNAP | 91% | View |
| 450HXW68MEFR18X20 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 88% | View |
Submit your RFQ for UPT2G680MHD and get a quote within 24 hours.
