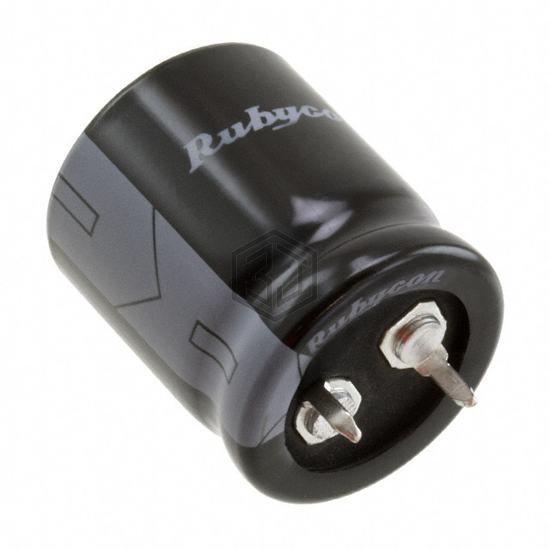

CAP ALUM 68UF 20% 420V SNAP
420MXC68MEFCSN22X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 68UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 1,684
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 714 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXC68MEFCSN22X25 | Rubycon | CAP ALUM 68UF 20% 400V SNAP | 98% | View |
| 450CXW68MEFR16X25 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 96% | View |
| 861141483001 | Würth Elektronik | CAP ALUM 68UF 20% 450V SNAP | 95% | View |
| 381LR680M420H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 420V SNAP | 81% | View |
| EKXJ401ELL680ML25S | United Chemi-Con | CAP ALUM 68UF 20% 400V RADIAL | 79% | View |
| UCS2V680MHD | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 71% | View |
Submit your RFQ for 420MXC68MEFCSN22X25 and get a quote within 24 hours.
