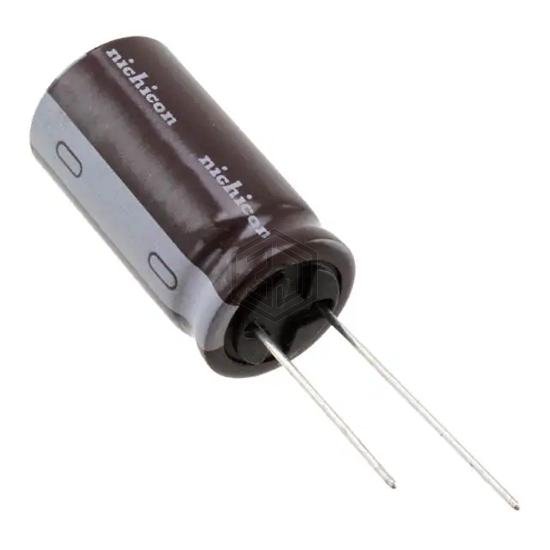

CAP ALUM 150UF 20% 250V RADIAL
UPT2E151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 620 mA @ 120 Hz |
| Ripple Current @ High Frequency | 992 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LASW6151MELA35 | Nichicon | CAP ALUM 150UF 20% 420V SNAP | 76% | View |
| UPT2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 75% | View |
| UCY2D151MHD6TN | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 69% | View |
| 381LX151M400H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 400V SNAP | 69% | View |
| 80ZLJ150M10X20 | Rubycon | CAP ALUM 150UF 20% 80V RADIAL | 67% | View |
| UPH2W151MHD | Nichicon | CAP ALUM 150UF 20% 450V RADIAL | 62% | View |
