CAP ALUM 150UF 20% 420V SNAP

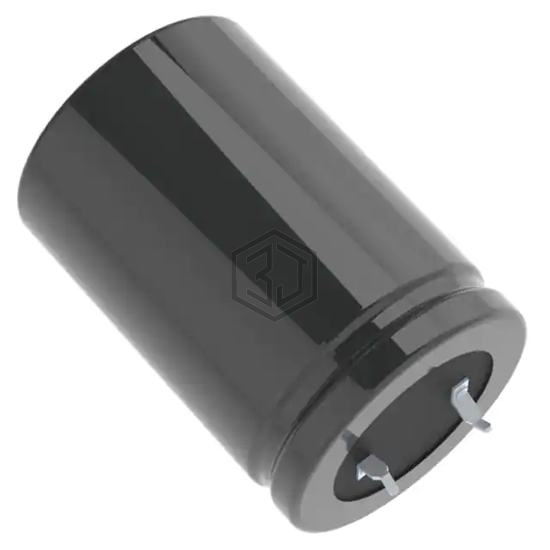

LASW6151MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,842
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 943 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX151M400H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 400V SNAP | 95% | View |
| UPT2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 91% | View |
| UPH2W151MHD | Nichicon | CAP ALUM 150UF 20% 450V RADIAL | 83% | View |
| UPT2E151MHD | Nichicon | CAP ALUM 150UF 20% 250V RADIAL | 76% | View |
| 80ZLJ150M10X20 | Rubycon | CAP ALUM 150UF 20% 80V RADIAL | 67% | View |
| UCY2D151MHD6TN | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 61% | View |
Submit your RFQ for LASW6151MELA35 and get a quote within 24 hours.
