CAP ALUM 680UF 20% 200V RADIAL

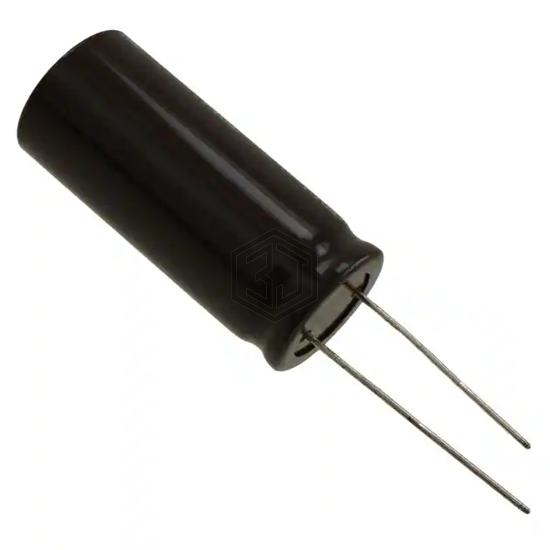

UPT2D681MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215982681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 99% | View |
| 220VXG680MEFCSN35X25 | Rubycon | CAP ALUM 680UF 20% 220V SNAP | 96% | View |
| 200MXC680MEFCSN30X30 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 93% | View |
| LAQ2D681MELB30 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 93% | View |
| EKMR201VSN681MP35S | United Chemi-Con | CAP ALUM 680UF 20% 200V SNAP | 91% | View |
| LKX2E681MESB40 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 86% | View |
Submit your RFQ for UPT2D681MRD and get a quote within 24 hours.
