CAP ALUM 2.2UF 20% 450V RADIAL

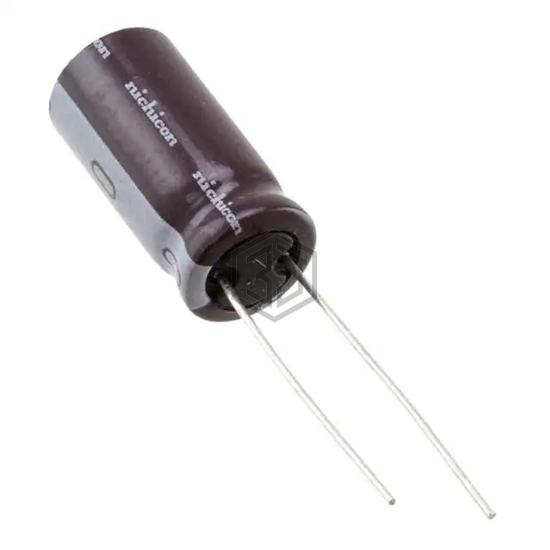

UPS2W2R2MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,567
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 46.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2W2R2MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2G2R2MPD1TD | Nichicon | CAP ALUM 2.2UF 20% 400V RADIAL | 95% | View |
| MALREKB00PB122X00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 400V RADIAL | 94% | View |
| UPS2D2R2MED1TA | Nichicon | CAP ALUM 2.2UF 20% 200V RADIAL | 72% | View |
| 50YXF2.2MEFCTA5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 66% | View |
| VHT2.2M250 | NTE Electronics, Inc | CAP ALUM 2.2UF 20% 250V RADIAL | 62% | View |
| 50YXM2.2MEFRTA5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 56% | View |
