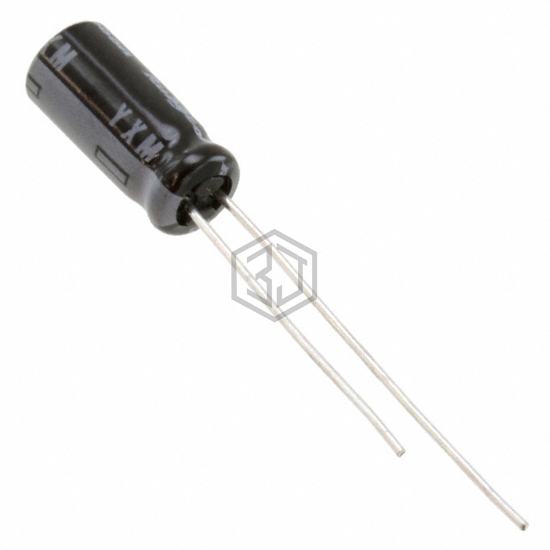

CAP ALUM 2.2UF 20% 50V RADIAL
50YXF2.2MEFCTA5X11 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.06 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43 mA @ 100 kHz |
| Impedance | 2.5 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1H2R2MDH | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 96% | View |
| UPW1H2R2MDH | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 91% | View |
| 50YXM2.2MEFRTA5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 90% | View |
| UBT1H2R2MPD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 86% | View |
| EEU-EB1H2R2SB | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 82% | View |
| UPB1H2R2MDD1TA | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 82% | View |
Submit your RFQ for 50YXF2.2MEFCTA5X11 and get a quote within 24 hours.
