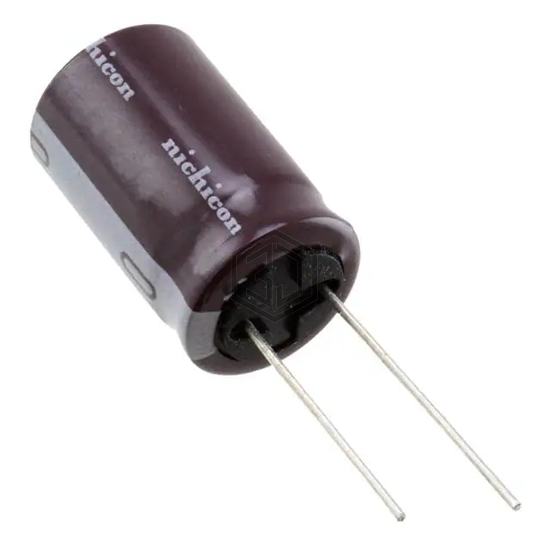

CAP ALUM 33UF 20% 315V RADIAL
UPS2F330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 193
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 155 mA @ 120 Hz |
| Ripple Current @ High Frequency | 248 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2F330MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2E330MHD | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 86% | View |
| UAQ2D330MHD6TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 85% | View |
| 860240674004 | Würth Elektronik | CAP ALUM 33UF 20% 50V RADIAL | 72% | View |
| 500LXW33MEFR14.5X25 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 70% | View |
| ELE-500ELL330MF11D | United Chemi-Con | CAP ALUM 33UF 20% 50V RADIAL | 63% | View |
| 450TXW33MEFR10X40 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL TH | 50% | View |
