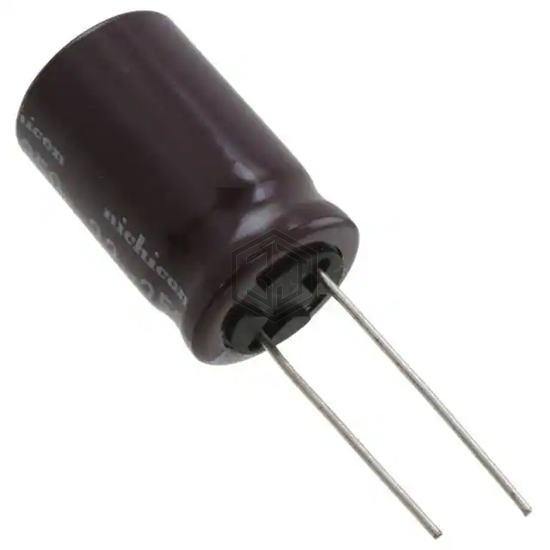

CAP ALUM 33UF 20% 250V RADIAL
UPJ2E330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,260
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 288 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2E330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAQ2D330MHD6TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 88% | View |
| 50RX3033M8X11.5 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL | 76% | View |
| EEU-FC2A330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
| 100ZLH33MEFC8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 66% | View |
| UCY2D330MPD | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 63% | View |
| 500LXW33MEFR14.5X25 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 56% | View |
Submit your RFQ for UPJ2E330MHD and get a quote within 24 hours.
