CAP ALUM 100UF 20% 315V RADIAL

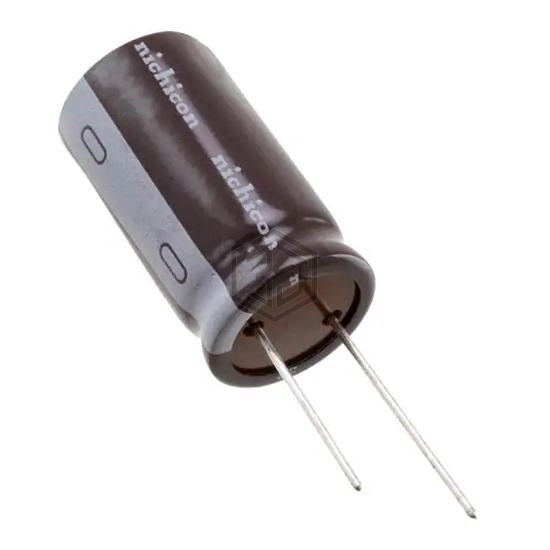

UPS2F101MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 6,486
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 285 mA @ 120 Hz |
| Ripple Current @ High Frequency | 456 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2F101MRD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1J101MPD6AA | Nichicon | CAP ALUM 63V POLAR | 70% | View |
| B41858C7107M006 | EPCOS - TDK Electronics | CAP ALUM 35V POLAR | 70% | View |
| RJA101M1JBK-1012S | Surge | CAP ALUM 63V POLAR | 68% | View |
| UBW1J101MPD1TD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 64% | View |
| UBT1J101MPD1TD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 64% | View |
| EST107M025AE3AA | KEMET | CAP ALUM 100UF 20% 25V RADIAL | 54% | View |
Submit your RFQ for UPS2F101MRD6 and get a quote within 24 hours.
