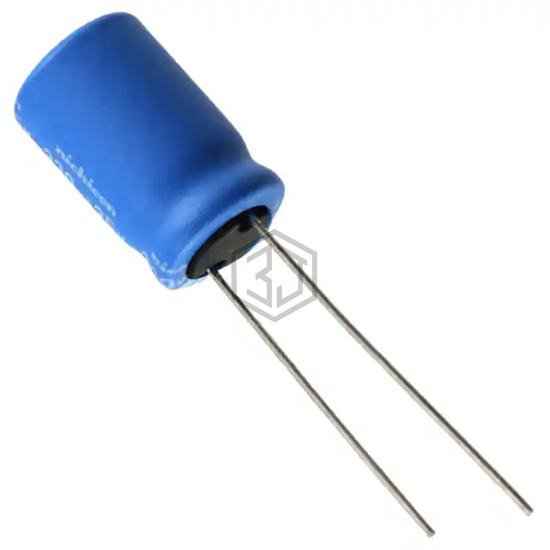

CAP ALUM 100UF 20% 63V RADIAL
UBT1J101MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 345 mA @ 120 Hz |
| Ripple Current @ High Frequency | 690 mA @ 100 kHz |
| Impedance | 410 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1J101MPD1TD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 100% | View |
| 63RX30100MT810X16 | Rubycon | CAP ALUM 100UF 20% 63V RADIAL | 80% | View |
| EAK107M050AH1AA | KEMET | CAP ALUM RAD GEN PUR 85C | 69% | View |
| RUA101M1ABK-1012S | Surge | CAP ALUM 10V POLAR | 65% | View |
| RUK101M1VBK-1020S | Surge | CAP ALUM 35V POLAR | 62% | View |
| B41896C7107M006 | EPCOS - TDK Electronics | CAP ALUM 35V POLAR | 56% | View |
Submit your RFQ for UBT1J101MPD1TD and get a quote within 24 hours.
