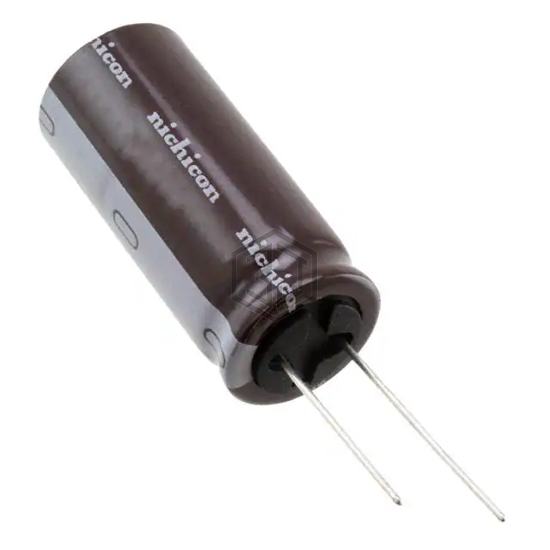

CAP ALUM 4700UF 20% 35V RADIAL
UPS1V472MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,366
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.871 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.3 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1V472MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214696476E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 84% | View |
| 517D478M035FV6AE3 | Vishay Sprague | CAP ALUM 4700UF 20% 35V RADIAL | 83% | View |
| UPM1C472MHD6 | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 72% | View |
| EEU-FK1A472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RAD TH | 65% | View |
| MAL225064472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 63% | View |
| 25WXA4700MEFCGC18X25 | Rubycon | CAP ALUM 4700UF 20% 25V RADIAL | 58% | View |
