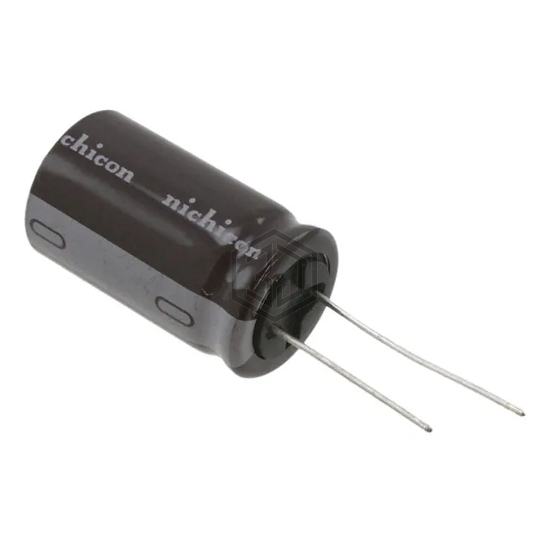

CAP ALUM 4700UF 20% 16V RADIAL
UPM1C472MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.72 A @ 10 kHz |
| Impedance | 23 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C472MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214696476E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 81% | View |
| EEU-FK1A472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RAD TH | 77% | View |
| 517D478M035FV6AE3 | Vishay Sprague | CAP ALUM 4700UF 20% 35V RADIAL | 71% | View |
| 25WXA4700MEFCGC18X25 | Rubycon | CAP ALUM 4700UF 20% 25V RADIAL | 64% | View |
| MAL211944472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 10V AXIAL | 57% | View |
| SEK472M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 6.3V RADIAL | 51% | View |
Submit your RFQ for UPM1C472MHD6 and get a quote within 24 hours.
