CAP ALUM 1500UF 20% 35V RADIAL

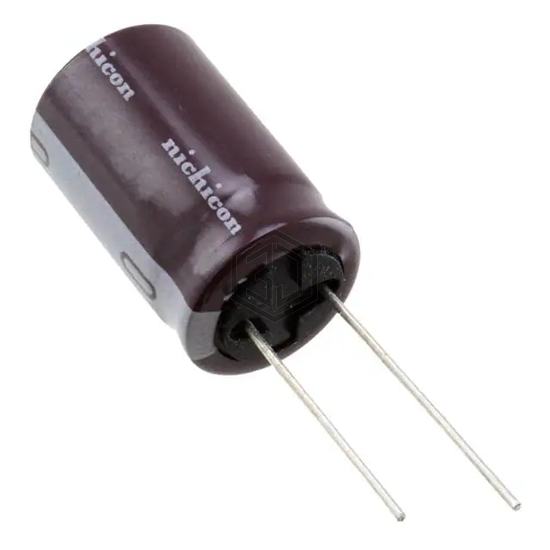

UPS1V152MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 228
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.653 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1V152MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215090187E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 95% | View |
| UPM1E152MHD6 | Nichicon | CAP ALUM 1500UF 20% 25V RADIAL | 88% | View |
| LXZ35VB152M12X35LL | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 86% | View |
| ELXY250ELL152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 77% | View |
| MAL214661152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 75% | View |
| 601D158F063GP1 | Vishay Sprague | CAP ALUM 1500UF 63V AXIAL | 54% | View |
Submit your RFQ for UPS1V152MHD and get a quote within 24 hours.
