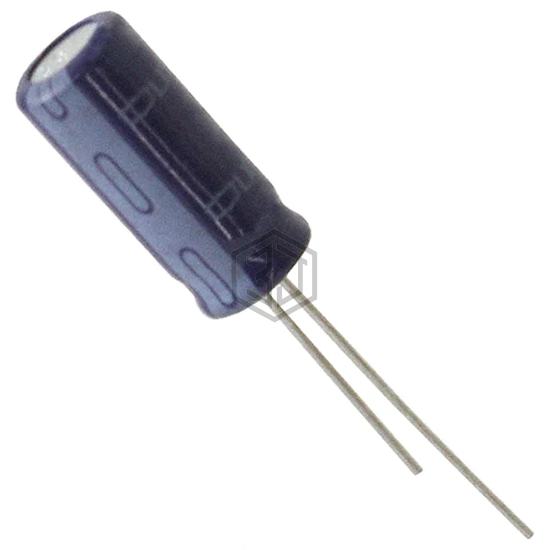

CAP ALUM 1500UF 20% 35V RADIAL
LXZ35VB152M12X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,679
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.506 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.51 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ35VB152M12X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215090187E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 94% | View |
| EEU-FC1H152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 50V RADIAL | 79% | View |
| ELXZ250ELL152MK25S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 77% | View |
| ELXY250ELL152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 67% | View |
| MAL214665152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V RADIAL | 58% | View |
| 601D158F063GP1 | Vishay Sprague | CAP ALUM 1500UF 63V AXIAL | 51% | View |
