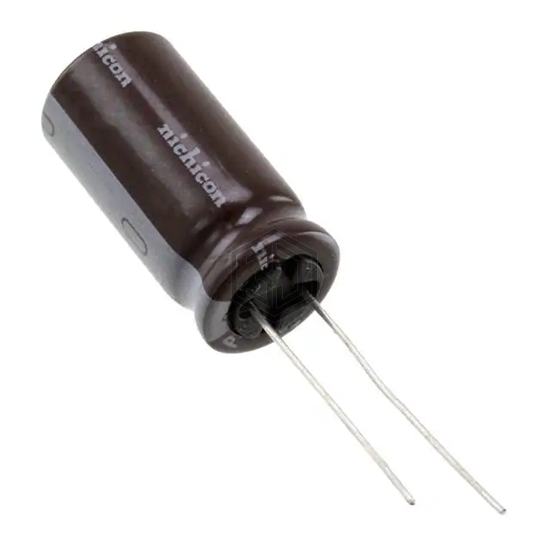

CAP ALUM 680UF 20% 50V RADIAL
UPS1H681MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 852 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1H681MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D687G050JJ1 | Vishay Sprague | CAP ALUM 680UF 50V AXIAL | 100% | View |
| EY1V681MNN1220F7 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| 687KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 16V RADIAL | 75% | View |
| 860160678032 | Würth Elektronik | CAP ALUM 680UF 20% 50V RADIAL | 74% | View |
| MAL214656681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 67% | View |
| UPA1C681MPD1TA | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for UPS1H681MHD1TO and get a quote within 24 hours.
