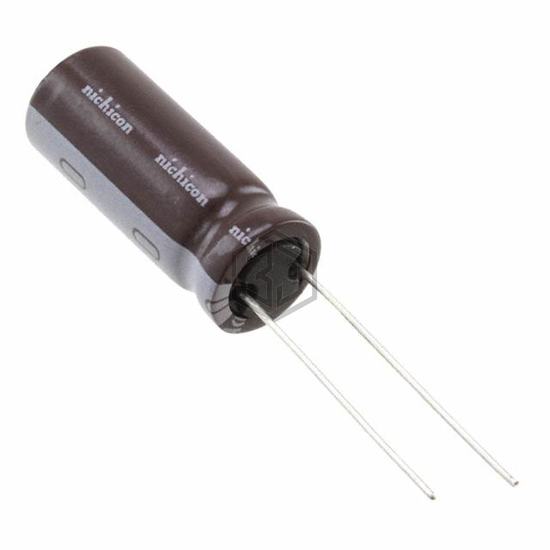

CAP ALUM 1500UF 20% 16V RADIAL
UPA1C152MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,668
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.428 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1C152MPD1TD | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 100% | View |
| EY1C152MNN1016 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 77% | View |
| UPA0J152MPD3TD | Nichicon | CAP ALUM 1500UF 20% 6.3V RADIAL | 76% | View |
| B41888C5158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 25V RADIAL | 71% | View |
| MAL211815152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V AXIAL | 67% | View |
| MAL211816152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V AXIAL | 58% | View |
