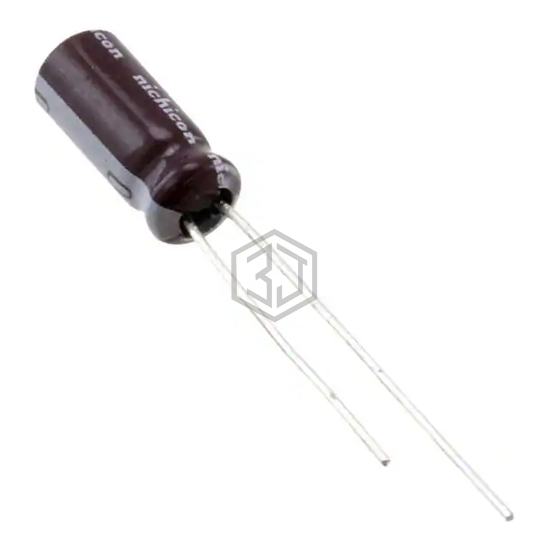

CAP ALUM 22UF 20% 25V RADIAL
UPS1E220MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,444
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27.2 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1E220MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USF1E220MDD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 76% | View |
| UST1C220MDD1TE | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 66% | View |
| UMF1C220MDD1TE | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 66% | View |
| UVZ1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 64% | View |
| UPV1H220MGD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 63% | View |
| EEA-FC1A220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V RADIAL | 51% | View |
Submit your RFQ for UPS1E220MDD1TA and get a quote within 24 hours.
