CAP ALUM 15000UF 20% 6.3V RADIAL

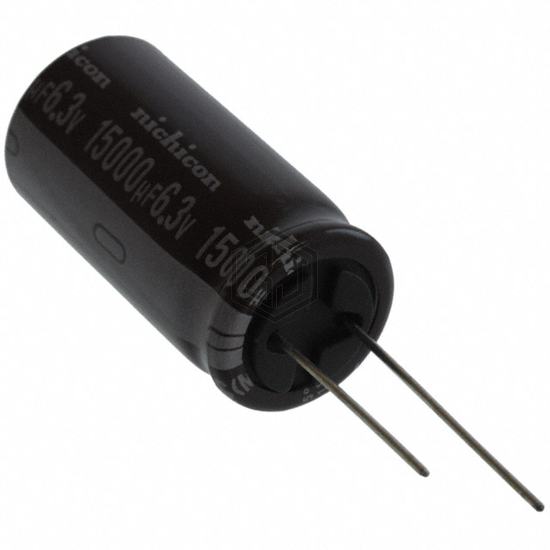

UPS0J153MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,734
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.349 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS0J153MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3PX15000MEFC16X31.5 | Rubycon | CAP ALUM 15000UF 20% 6.3V RADIAL | 94% | View |
| UKT0J153MHD | Nichicon | CAP ALUM 15000UF 20% 6.3V RADIAL | 93% | View |
| UKA1A153MHD | Nichicon | CAP ALUM 15000UF 20% 10V RADIAL | 85% | View |
| UVY1A153MHD | Nichicon | CAP ALUM 15000UF 20% 10V RADIAL | 79% | View |
| UPW0J153MHH | Nichicon | CAP ALUM 15000UF 20% 6.3V RADIAL | 79% | View |
| 16PX15000MEFC18X35.5 | Rubycon | CAP ALUM 15000UF 20% 16V RADIAL | 73% | View |
Submit your RFQ for UPS0J153MHD and get a quote within 24 hours.
