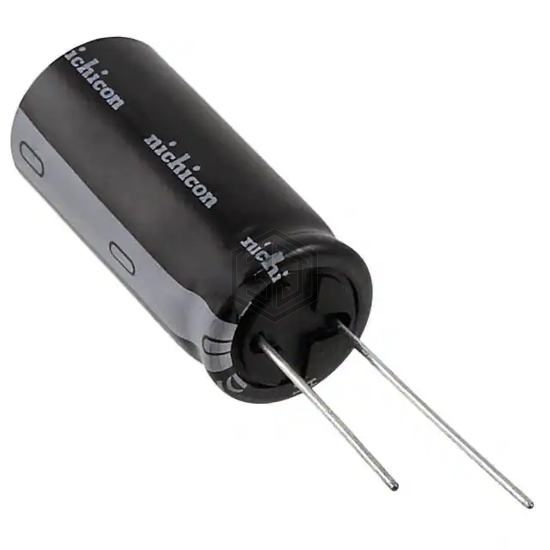

CAP ALUM 15000UF 20% 10V RADIAL
UVY1A153MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,477
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3575 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1A153MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1A153MHH | Nichicon | CAP ALUM 15000UF 20% 10V RADIAL | 97% | View |
| UKA0J153MHD | Nichicon | CAP ALUM 15000UF 20% 6.3V RADIAL | 85% | View |
| 6.3PX15000MEFC16X31.5 | Rubycon | CAP ALUM 15000UF 20% 6.3V RADIAL | 85% | View |
| UPS1A153MHD | Nichicon | CAP ALUM 15000UF 20% 10V RADIAL | 84% | View |
| SEK153M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 10V RADIAL | 76% | View |
| EKMQ250ELL153MP50S | United Chemi-Con | CAP ALUM 15000UF 20% 25V RADIAL | 66% | View |
Submit your RFQ for UVY1A153MHD and get a quote within 24 hours.
