CAP ALUM 220UF 20% 100V RADIAL

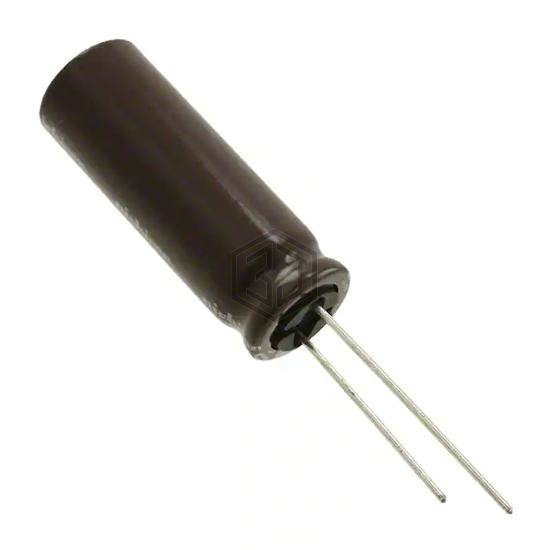

UPM2A221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,907
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 87 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A221MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2A221MHD6TN | Nichicon | CAP ALUM 220UF 20% 100V RADIAL | 99% | View |
| MAL213639221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V RADIAL | 86% | View |
| 672D227F040EK4D | Vishay Sprague | CAP ALUM 220UF 40V RADIAL | 69% | View |
| UPW1J221MPD6TD | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 66% | View |
| MAL215090228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 55% | View |
| EEU-FC1V221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for UPM2A221MHD and get a quote within 24 hours.
