Panasonic Electronic Components

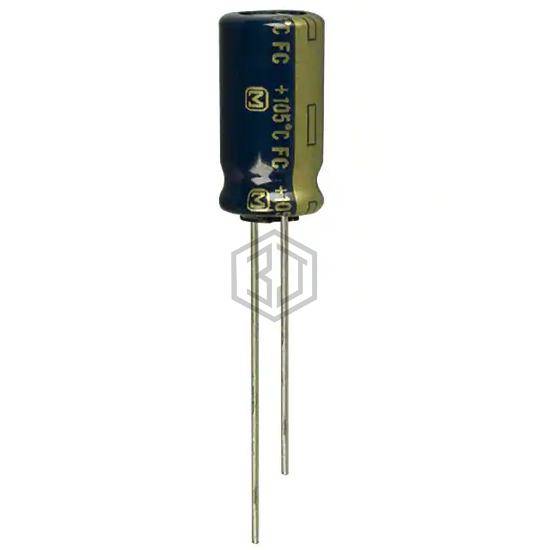

CAP ALUM 220UF 20% 35V RADIAL
EEU-FC1V221L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 474.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 100 kHz |
| Impedance | 85 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215090228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 100% | View |
| UPW1E221MPD1CV | Nichicon | CAP ALUM 25V POLAR | 77% | View |
| EEU-HD1V221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 72% | View |
| ECA-1VHG221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 72% | View |
| MAL215055221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 64% | View |
| RJA221M1EBK-0811S | SURGE | CAP ALUM 220UF 20% 25V RADIAL | 63% | View |
