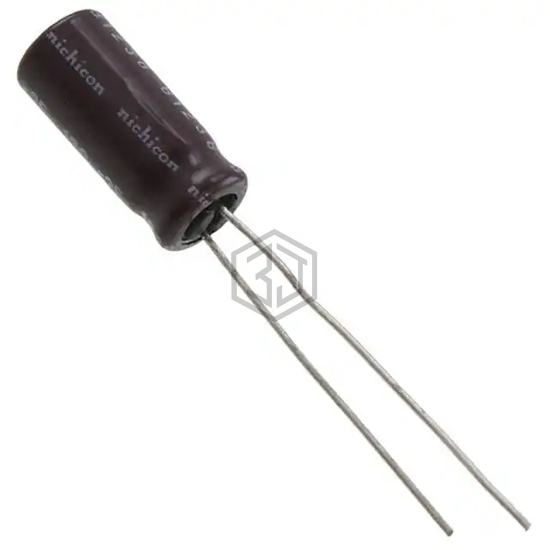

CAP ALUM 68UF 20% 35V RADIAL
UPM1V680MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,941
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 370 mA @ 10 kHz |
| Impedance | 240 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V680MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV500ELL680MH12D | United Chemi-Con | CAP ALUM 68UF 20% 50V RADIAL | 79% | View |
| 600D686D050DG5 | Vishay Sprague | CAP ALUM 68UF 50V AXIAL | 77% | View |
| MAL213668689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V RADIAL | 72% | View |
| EV686M025A9GAAKPLP | KEMET | ALUM ELECTRO CAP | 66% | View |
| 672D686H060DM4C | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 65% | View |
| 672D686H060DM5G | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 65% | View |
Submit your RFQ for UPM1V680MED1TD and get a quote within 24 hours.
