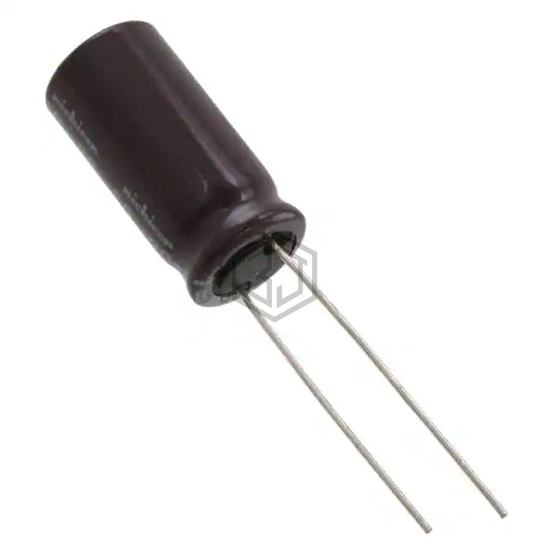

CAP ALUM 68UF 20% 80V RADIAL
UPM1K680MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 6,851
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 355 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 280 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K680MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TCX650U075G1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 65UF 75V AXIAL | 90% | View |
| UPJ1K680MHD6 | Nichicon | CAP ALUM 68UF 20% 80V RADIAL | 89% | View |
| EEU-FC2A680LB | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 83% | View |
| ELXV630ELL680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 70% | View |
| 600D686G050DG4 | Vishay Sprague | CAP ALUM 68UF 50V AXIAL | 70% | View |
| MAL213668689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V RADIAL | 69% | View |
