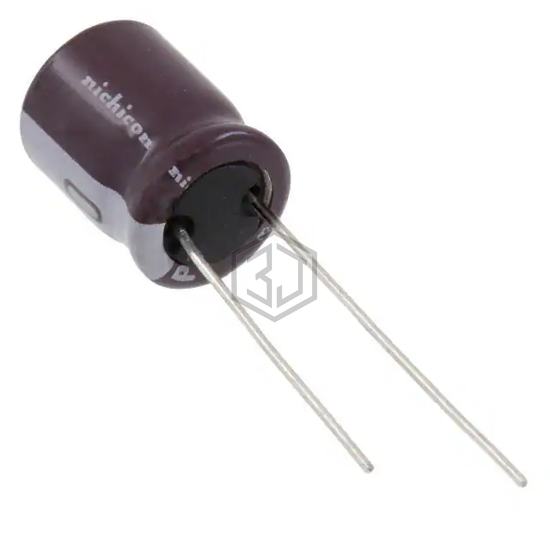

CAP ALUM 68UF 20% 63V RADIAL
UPM1J680MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,293
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 495 mA @ 10 kHz |
| Impedance | 190 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1J680MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V RADIAL | 85% | View |
| UBX1K680MPL1TD | Nichicon | CAP ALUM 68UF 20% 80V RADIAL | 82% | View |
| MAL211990505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 63V AXIAL | 74% | View |
| ELXV101ETD680MK15S | United Chemi-Con | CAP ALUM 68UF 20% 100V RADIAL | 70% | View |
| MAL211929689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 100V AXIAL | 65% | View |
| MAL211890004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 200V T/H | 51% | View |
