Vishay Beyschlag/Draloric/BC Components
CAP ALUM 68UF 100V AXIAL

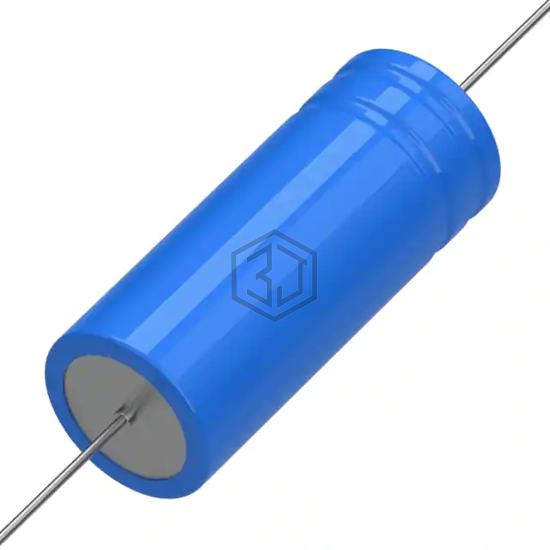

MAL211929689E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 68UF 100V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 100 V, package / case Axial, Can.
In Stock: 1,930
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.9Ohm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 330 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1K680MPL1TD | Nichicon | CAP ALUM 68UF 20% 80V RADIAL | 89% | View |
| MAL211990505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 63V AXIAL | 72% | View |
| MAL212326689 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 25V AXIAL | 64% | View |
| MAL212317689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 40V AXIAL | 57% | View |
| MAL212315689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 16V AXIAL | 55% | View |
| MAL212320689 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 35V AXIAL | 52% | View |
