CAP ALUM 12UF 20% 50V RADIAL

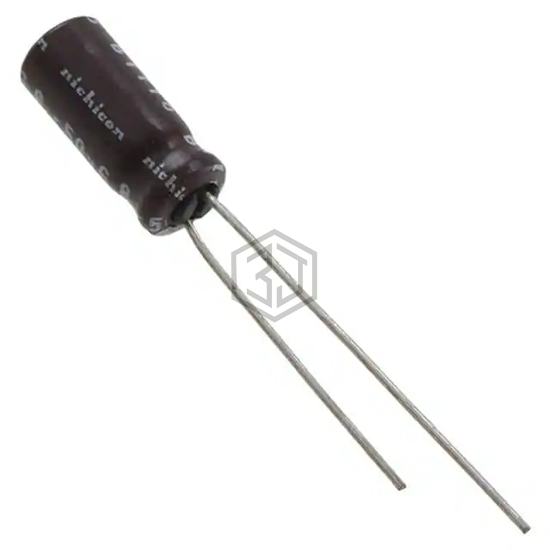

UPM1H120MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,253
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 125 mA @ 10 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1H120MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1H120MDD1TD | Nichicon | CAP ALUM 12UF 20% 50V RADIAL | 96% | View |
| B41042A6126M | EPCOS - TDK Electronics | CAP ALUM 12UF 20% 50V RADIAL | 88% | View |
| UPJ1J120MDD1TD | Nichicon | CAP ALUM 12UF 20% 63V RADIAL | 86% | View |
| EEU-FC2A120H | Panasonic Electronic Components | CAP ALUM 12UF 20% 100V RADIAL | 71% | View |
| ELXV630ELL120MEB5D | United Chemi-Con | CAP ALUM 12UF 20% 63V RADIAL | 61% | View |
| 126KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 12UF 20% 100V RADIAL | 55% | View |
Submit your RFQ for UPM1H120MDD and get a quote within 24 hours.
