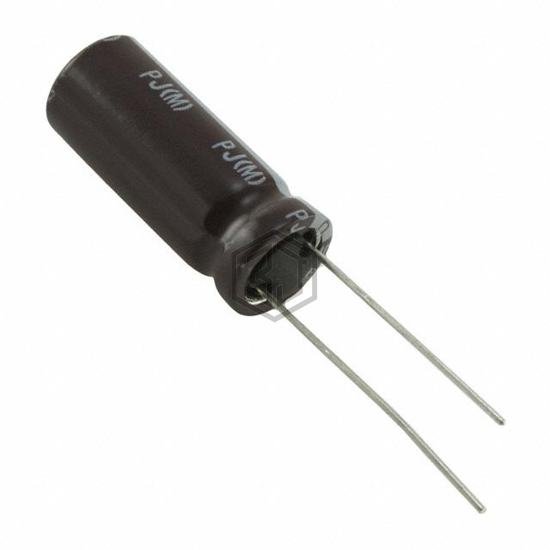

CAP ALUM 12UF 20% 50V RADIAL
UPJ1H120MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,944
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 125 mA @ 10 kHz |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H120MDD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H120MDD | Nichicon | CAP ALUM 12UF 20% 50V RADIAL | 96% | View |
| B41042A6126M | EPCOS - TDK Electronics | CAP ALUM 12UF 20% 50V RADIAL | 92% | View |
| UPJ1J120MDD | Nichicon | CAP ALUM 12UF 20% 63V RADIAL | 85% | View |
| UPJ1J120MDD1TD | Nichicon | CAP ALUM 12UF 20% 63V RADIAL | 85% | View |
| 600D126F075KD4 | Vishay Sprague | CAP ALUM 12UF 75V AXIAL | 67% | View |
| 126KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 12UF 20% 100V RADIAL | 60% | View |
Submit your RFQ for UPJ1H120MDD1TD and get a quote within 24 hours.
