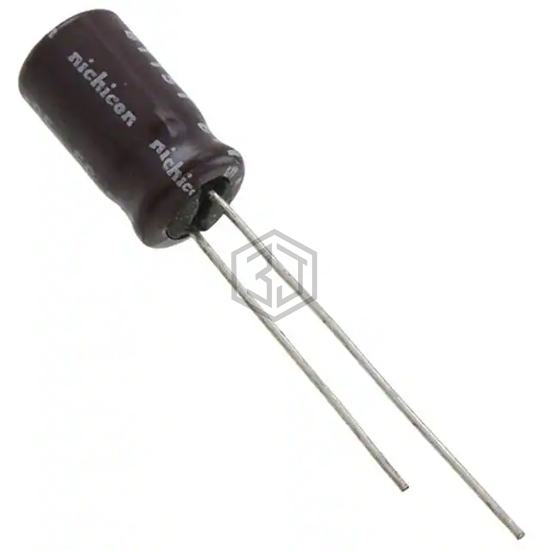

CAP ALUM 56UF 20% 25V RADIAL
UPM1E560MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,129
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 10 kHz |
| Impedance | 440 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E560MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 25V RADIAL | 97% | View |
| ELXV350ETD560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 81% | View |
| ELXV800ELL560MJ16S | United Chemi-Con | CAP ALUM 56UF 20% 80V RADIAL | 58% | View |
| ELXY160ELL560MEB5D | United Chemi-Con | CAP ALUM 56UF 20% 16V RADIAL | 58% | View |
| EEU-FC1J560 | Panasonic Electronic Components | CAP ALUM 56UF 20% 63V RADIAL | 54% | View |
| 860080674006 | Würth Elektronik | CAP ALUM 56UF 20% 50V RADIAL | 50% | View |
Submit your RFQ for UPM1E560MED and get a quote within 24 hours.
