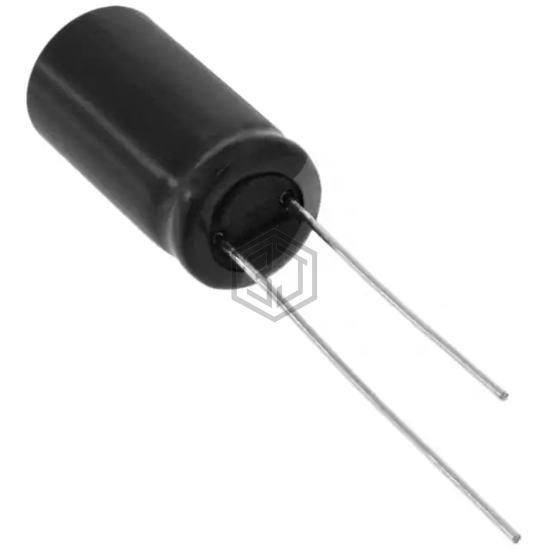

CAP ALUM 56UF 20% 80V RADIAL
ELXV800ELL560MJ16S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 56UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 330 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J560 | Panasonic Electronic Components | CAP ALUM 56UF 20% 63V RADIAL | 80% | View |
| EEU-FC2A560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 100V RADIAL | 77% | View |
| UBX1K560MPL1TD | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 76% | View |
| 860080674006 | Würth Elektronik | CAP ALUM 56UF 20% 50V RADIAL | 67% | View |
| ELXV350ELL560MFB5S | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 55% | View |
| ELXV350ETD560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for ELXV800ELL560MJ16S and get a quote within 24 hours.
