CAP ALUM 390UF 20% 16V RADIAL

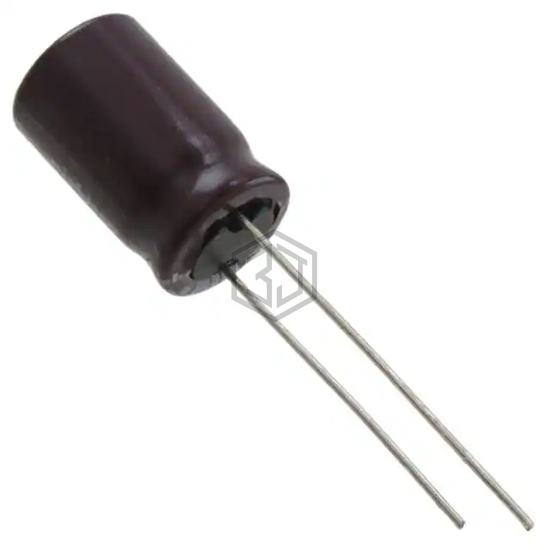

UPM1C391MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,747
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 570 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 10 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C391MPD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D397M016CD3D | Vishay Sprague | CAP ALUM 390UF 20% 16V RADIAL | 100% | View |
| UPA1C391MPD1TA | Nichicon | CAP ALUM 390UF 20% 16V RADIAL | 93% | View |
| 860080274010 | Würth Elektronik | CAP ALUM 390UF 20% 10V RADIAL | 79% | View |
| 600D397F040DX5 | Vishay Sprague | CAP ALUM 390UF 40V AXIAL | 75% | View |
| UPJ1K391MHH6 | Nichicon | CAP ALUM 390UF 20% 80V RADIAL | 61% | View |
| 672D397H040DS2C | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 56% | View |
