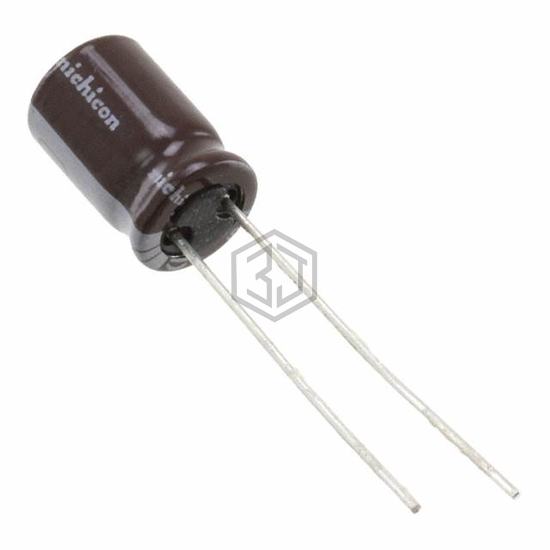

CAP ALUM 390UF 20% 16V RADIAL
UPA1C391MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,655
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D397M016CD3D | Vishay Sprague | CAP ALUM 390UF 20% 16V RADIAL | 100% | View |
| UPM1C391MPD6 | Nichicon | CAP ALUM 390UF 20% 16V RADIAL | 93% | View |
| B41888C4397M006 | EPCOS - TDK Electronics | CAP ALUM 16V POLAR | 84% | View |
| UPM1A391MPD6 | Nichicon | CAP ALUM 390UF 20% 10V RADIAL | 75% | View |
| 600D397F040DX5 | Vishay Sprague | CAP ALUM 390UF 40V AXIAL | 69% | View |
| 672D397H040DS2C | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 56% | View |
Submit your RFQ for UPA1C391MPD1TA and get a quote within 24 hours.
