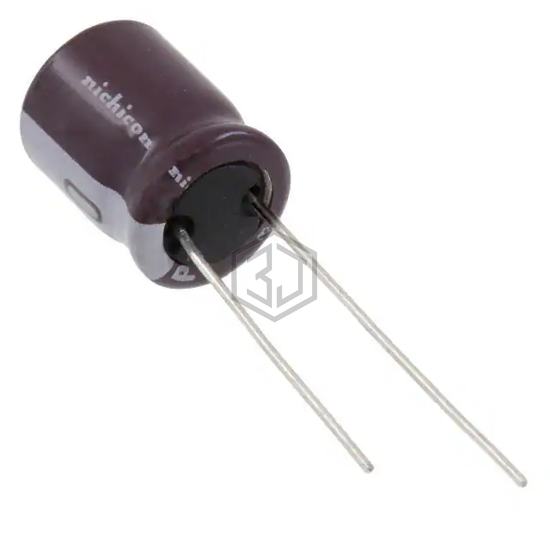

CAP ALUM 470UF 20% 10V RADIAL
UPM1A471MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 473
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 535 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 10 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A471MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG350ELL471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 75% | View |
| EKMG350ETD471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 75% | View |
| B41888C4477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 16V RADIAL | 72% | View |
| ECA-1AHG471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V RADIAL | 68% | View |
| UPA1E471MPD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 64% | View |
| 16WXA470MEFCT78X9 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 59% | View |
