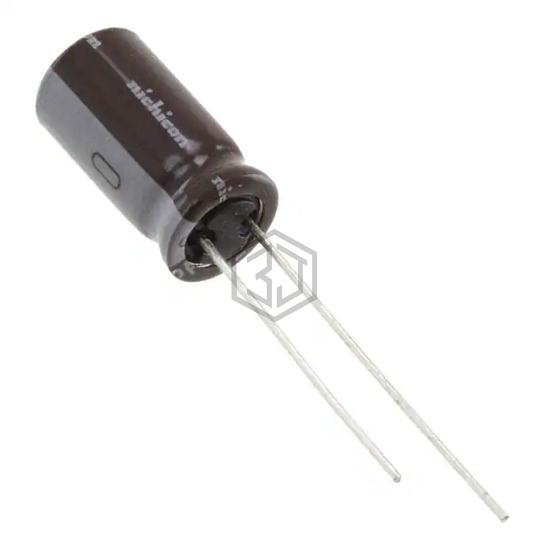

CAP ALUM 470UF 20% 25V RADIAL
UPA1E471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz |
| Ripple Current @ High Frequency | 860 mA @ 100 kHz |
| Impedance | 62 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1C471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 78% | View |
| EKMG350ELL471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 76% | View |
| EKMG350ETD471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 76% | View |
| B41888C4477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 16V RADIAL | 76% | View |
| MAL213668471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 60% | View |
| MAL216031471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for UPA1E471MPD and get a quote within 24 hours.
