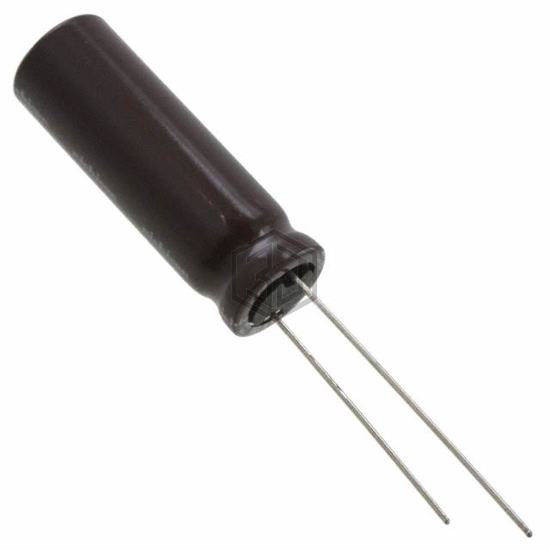

CAP ALUM 1500UF 20% 10V RADIAL
UPM1A152MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 105
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.45 A @ 10 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A152MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA0J152MPD3TD | Nichicon | CAP ALUM 1500UF 20% 6.3V RADIAL | 84% | View |
| UPA1C152MPD1TD | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 79% | View |
| UPA1C152MPD | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 79% | View |
| EY1C152MNN1016 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 72% | View |
| MAL211814152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 10V AXIAL | 69% | View |
| MAL211815152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V AXIAL | 55% | View |
Submit your RFQ for UPM1A152MPD and get a quote within 24 hours.
