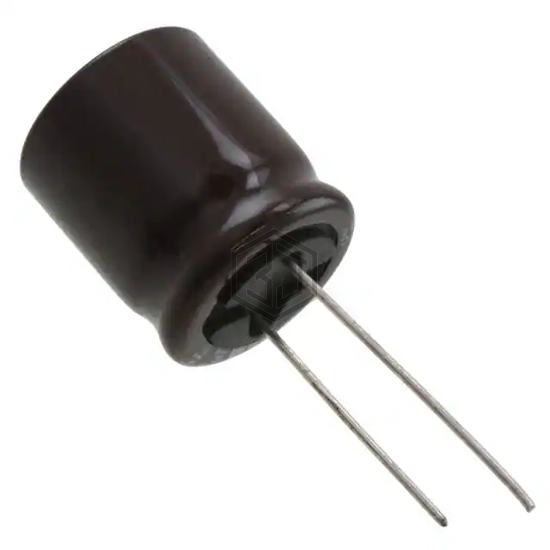

CAP ALUM 5600UF 20% 6.3V RADIAL
UPM0J562MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,228
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.98 A @ 10 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM0J562MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK0J562S | Panasonic Electronic Components | CAP ALUM 5600UF 20% 6.3V RAD TH | 94% | View |
| B41888E3568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 10V RADIAL | 70% | View |
| UPA1A562MHD | Nichicon | CAP ALUM 5600UF 20% 10V RADIAL | 65% | View |
| EEU-FK1C562 | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RAD TH | 65% | View |
| EEU-FK1C562B | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RAD TH | 65% | View |
| ELXY160ELL562ML40S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 61% | View |
