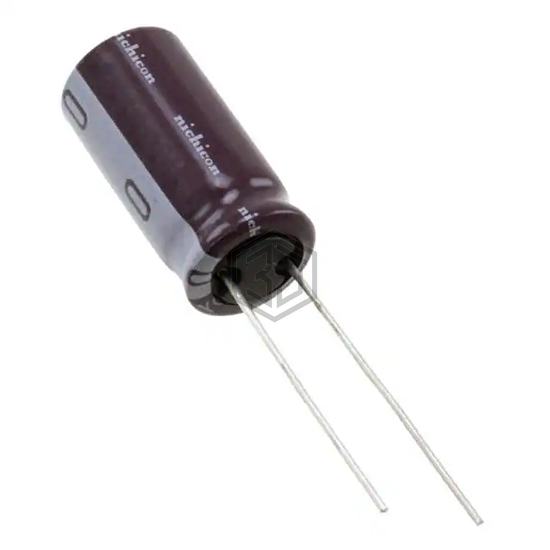

CAP ALUM 33UF 20% 200V RADIAL
UCY2D330MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,730
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 610 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2H330MHD | Nichicon | CAP ALUM 33UF 20% 500V RADIAL | 72% | View |
| 450TXW33MEFR10X40 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL TH | 72% | View |
| UAQ2D330MHD6TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 64% | View |
| 100ZLH33MEFC8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 61% | View |
| 500LXW33MEFR14.5X25 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 56% | View |
| EEU-FC2A330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 52% | View |
