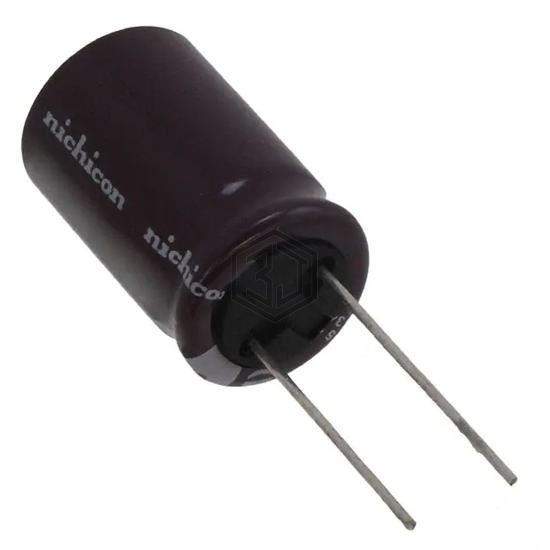

CAP ALUM 47UF 20% 160V RADIAL
UPJ2C470MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,192
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 352 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2C470MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214232479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 200V RADIAL | 89% | View |
| SH470M100ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 100V RADIAL | 80% | View |
| B43041B9476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 400V RADIAL | 74% | View |
| UVY2A470MPD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 69% | View |
| 30DT476M030CC5A | Vishay Sprague | CAP ALUM 47UF 20% 30V AXIAL | 56% | View |
| 100ZLJ47MTA8X16 | Rubycon | CAP ALUM 47UF 20% 100V RADIAL | 53% | View |
