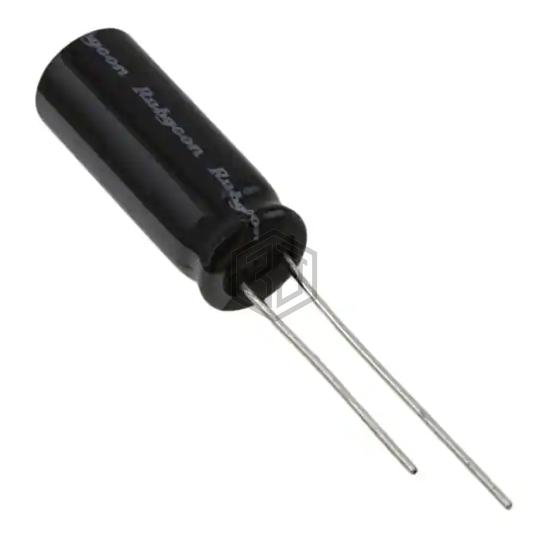

CAP ALUM 47UF 20% 100V RADIAL
100ZLJ47MTA8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 780 mA @ 100 kHz |
| Impedance | 200 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V470MHD1TO | Nichicon | CAP ALUM 47UF 20% 350V RADIAL | 66% | View |
| EKXN451ELL470MM16S | Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL TH | 66% | View |
| MAL214869479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 100V RADIAL | 59% | View |
| 16MH747MEFCT55X7 | Rubycon | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
| 672D476H040CD2D | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 56% | View |
| 30DT476M030CC5A | Vishay Sprague | CAP ALUM 47UF 20% 30V AXIAL | 56% | View |
Submit your RFQ for 100ZLJ47MTA8X16 and get a quote within 24 hours.
